Object Detection

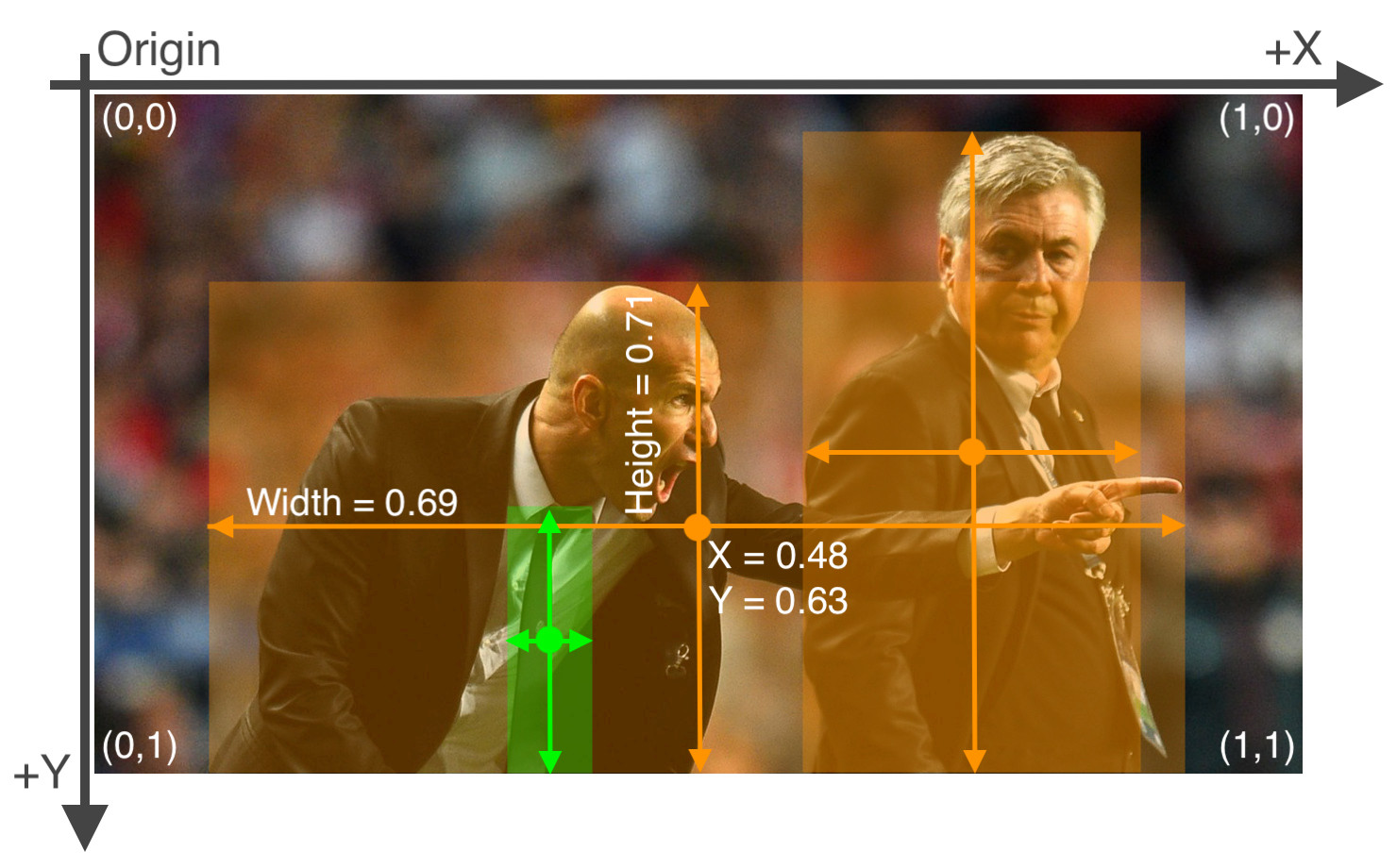

Object Detection task with YOLOv5 model. This document contains the explanations of arguments of each script. You can find the tutorial document for finetuning a pretrained model on COCO128 dataset under the `tutorial` folder, `tutorial/README.md`. The ipython notebook tutorial is also prepared under the `tutorial` folder as `tutorial/tutorial.ipynb`. You may upload and run this ipython notebook on Google colab. # Prerequisites - Python 3.8 or above # Installation ```bash $ pip install -U pip $ pip install -r requirements.txt ``` # Dataset & Preparation The image data, annotations and dataset.yaml are required. ## MS COCO Our traning script accepts MS COCO dataset. You may download the dataset using the following link: - Download [2017 MS COCO Dataset](https://cocodataset.org/#download) ## Custom Datasets You can also train the model on a custom dataset. ### Annotations Format After using a tool like [CVAT](https://github.com/openvinotoolkit/cvat), [makesense.ai](https://www.makesense.ai) or [Labelbox](https://labelbox.com) to label your images, export your labels to YOLO format, with one `*.txt` file per image (if no objects in image, no `*.txt` file is required). The `*.txt` file specifications are: - One row per object - Each row is `class x_center y_center width height` format. - Box coordinates must be in normalized xywh format (from 0 - 1). If your boxes are in pixels, divide `x_center` and `width` by image `width`, and `y_center` and `height` by image height. - Class numbers are zero-indexed (start from 0).

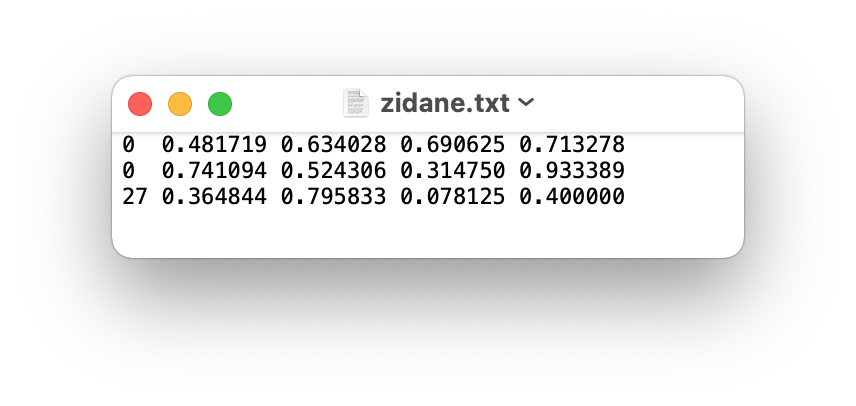

The label file corresponding to the above image contains 2 persons (class 0) and a tie (class 27):
### Directory Organization Your own datasets are expected to have the following structure. We assume `/dataset` is next to the `/yolov5` directory. YOLOv5 locates labels automatically for each image by replacing the last instance of `/images/` in each image path with `/labels/`. ```bash - Dataset name -- images -- train --- img001.jpg --- ... -- val --- img002.jpg --- ... -- labels -- train --- img001.txt --- ... -- val --- img002.txt --- ... - yolov5 - generate_npy - exporting ``` ### dataset.yaml The yaml file for COCO dataset has been prepared in `./data/coco.yaml`. For custom dataset, you need to prepare the yaml file and save it under `./data/`. The yaml file is expected to have the following format: ```bash # train and val datasets (image directory or *.txt file with image paths) train: ./datasets/images/train/ val: ./datasets/images/val/ # number of classes nc: number of classes # class names names: list of class names ``` # Train For training on MS COCO, execute commands in the folder `yolov5`: ```shell CUDA_VISIBLE_DEVICES='0' python train.py --data coco.yaml --cfg yolov5s-noupsample.yaml --weights '' --batch-size 64 ``` `CUDA_VISIBLE_DEVICES='0'` indicates the gpu ids. `--data` the yaml file. (located under `./data/`) `--cfg` the model configuration. (located under `./model/`) (`yolov5s-noupsample.yaml` for 520, `yolov5s.yaml` for 720) `--hyp` the path to hyperparameters file. (located under `./data/`) `--weights` the path to pretained model weights. ('' if train from scratch) `--epochs` the number of epochs to train. (Default: 300) `--batch-size` batch size. (Default: 16) `--img-size` the input size of the model. (Default: (640, 640)) `--workers` the maximum number of dataloader workers. (Default: 8) By default, the trained models are saved under `./runs/train/`. ## Generating .npy for different model input We can generating `.npy` for different model input by using `yolov5_generate_npy.py`. Execute commands in the folder `generate_npy`: ```shell python yolov5_generate_npy.py --input-h 640 --input-w 640 ``` `--input-h` the input height. (Default: 640) `--input-w` the input width. (Default: 640) We could get `*.npy` # Configure the paths yaml file You are expected to create a yaml file which stores all the paths related to the trained models. This yaml file will be used in the following sections. You can check and modify the `pretrained_paths_520.yaml` and `pretrained_paths_720.yaml` under `/yolov5/data/`. The yaml file is expected to contain the following information: ```shell grid_dir: path_to_npy_file_directory grid20_path: path_to_grid20_npy_file grid40_path: path_to_grid40_npy_file grid80_path: path_to_grid80_npy_file yolov5_dir: path_to_yolov5_directory path: path_to_pretrained_yolov5_model_weights_pt_file yaml_path: path_to_the_model_configuration_yaml_file pt_path: path_to_export_yolov5_model_weights_kneron_supported_file onnx_export_file: path_to_export_yolov5_onnx_model_file input_w: model_input_weight input_h: model_input_height nc: number_of_classes names: list_of_class_names ``` # Save and Convert to ONNX This section will introduce how to save the trained model for pytorch1.4 supported format and convert to ONNX. ## Exporting ONNX model in the PyTorch 1.7 environment We can convert the model to onnx by using `yolov5_export.py`. Execute commands in the folder `yolov5`: ```shell python ../exporting/yolov5_export.py --data path_to_pretrained_path_yaml_file ``` `--data` the path to pretrained model paths yaml file (Default: ../yolov5/data/pretrained_paths_520.yaml) We could get onnx model. ## Converting onnx by tool chain Pull the latest [ONNX converter](https://github.com/kneron/ONNX_Convertor/tree/master/optimizer_scripts) from github. You may read the latest document from Github for converting ONNX model. Execute commands in the folder `ONNX_Convertor/optimizer_scripts`: (reference: https://github.com/kneron/ONNX_Convertor/tree/master/optimizer_scripts) ```shell python -m onnxsim input_onnx_model output_onnx_model python pytorch2onnx.py input.pth output.onnx ``` We could get converted onnx model. # Inference Before model inference, we assume that the model has been converted to onnx model as in the previous section (even if only inference pth model). Create a yaml file containing the path information. For model inference on a single image, execute commands in the folder `yolov5`: ```shell python inference.py --data path_to_pretrained_path_yaml_file --img-path path_to_image --save-path path_to_saved_image ``` `--img-path` the path to the image. `--save-path` the path to draw and save the image with bbox. `--data` the path to pretrained model paths yaml file. (Default: data/pretrained_paths_520.yaml) `--conf_thres` the score threshold of bounding boxes. (Default: 0.3) `--iou_thres` the iou threshold for NMS. (Default: 0.3) `--onnx` whether is onnx model inference. You could find preprocessing and postprocessing processes under the folder `exporting/yolov5/`. # Evaluation ## Evaluation Metric We will use mean Average Precision (mAP) for evaluation. You can find the script for computing mAP in `test.py`. `mAP`: mAP is the average of Average Precision (AP). AP summarizes a precision-recall curve as the weighted mean of precisions achieved at each threshold, with the increase in recall from the previous threshold used as the weight: where and are the precision and recall at the nth threshold. The mAP compares the ground-truth bounding box to the detected box and returns a score. The higher the score, the more accurate the model is in its detections. ## Evaluation on a Dataset For evaluating the trained model on dataset: ```shell python test.py --weights path_to_pth_model_weight --data path_to_data_yaml_file ``` `--weights` The path to pretrained model weight. (Defalut: best.pt) `--data` The path to data yaml file. (Default: data/coco128.yaml) `--img-size` Input shape of the model (Default: (640, 640)) `--conf-thres` Object confidence threshold. (Default: 0.001) `--device` Cuda device, i.e. 0 or 0,1,2,3 or cpu. (Default: cpu) `--verbose` Whether report mAP by class. ## End-to-End Evaluation If you would like to perform an end-to-end test with an image dataset, you can use `inference_e2e.py` under the directory `yolov5` to obtain the prediction results. You have to prepare an initial parameter yaml file for the inference runner. You may check `utils/init_params.yaml` for the format. ```shell python inference_e2e.py --img-path path_to_dataset_folder --params path_to_init_params_file --save-path path_to_save_json_file ``` `--img-path` Path to the dataset directory `--params` Path to initial parameter yaml file for the inference runner `--save-path` Path to save the prediction to a json file `--gpu` GPU id (-1 if cpu) (Default: -1) The predictions will be saved into a json file that has the following structure: ```bash [ {'img_path':image_path_1 'bbox': [[l,t,w,h,score,class_id], [l,t,w,h,score,class_id]] }, {'img_path':image_path_2 'bbox': [[l,t,w,h,score,class_id], [l,t,w,h,score,class_id]] }, ... ] ``` # Model Backbone | Input Size | FPS on 520 | FPS on 720 | Model Size | mAP --- | --- |:---:|:---:|:---:|:---: [YOLOv5s (no upsample)](https://github.com/kneron/Model_Zoo/tree/main/detection/yolov5/yolov5s-noupsample) | 640x640 | 4.91429 | - | 13.1M | 40.4% [YOLOv5s (with upsample)](https://github.com/kneron/Model_Zoo/tree/main/detection/yolov5/yolov5s) | 640x640 | - | 24.4114 | 14.6M | 50.9% [YOLOv5s (no upsample)](https://github.com/kneron/Model_Zoo/tree/main/detection/yolov5/yolov5s-noupsample) is the yolov5s model backbone without upsampling operation, since 520 hardware does not support upsampling operation.
